Altair Starwave 70ED Refractor & Mini-AZ Mount COMBO Package

Altair Starwave 70ED Refractor & Mini-AZ Mount COMBO Package

In the box - Starwave Mini-AZ mount kit:
Mount head.
Vixen-format clamp.
1kg Stainless Steel Counterweight & shaft.
80mm side arm extension.

About the Starwave 70ED refractor kit:
Featuring ED optics, the travel-friendly Starwave 70mm F6 ED Doublet refractor can be taken anywhere.
The optical tube folds down to just under 30cm length with the dewshield retracted, and weighs about 2kg.
The Starwave 70ED is capable of both visual observation and wide-field imaging in a single telescope.
The included accessories are high quality items, designed to do the Starwae 70 ED optics justice.

In the box - Starwave 70ED Refractor kit:
Starwave 70mm F6 ED Doublet optical tube with 2" Dual Speed Crayford focuser.
Multi reticule variable brightness RDF finder with metal body and quick release mounting stalk.
1.25" Dielectric Diagonal 99% reflective.
Quality wide field 17mm Eyepiece with 65° APOV, 16mm Eye Relief, 1.25" barrel and dust caps giving 25x magnification.
Case with strap, padded foam inserts, and space for accessories.
2"-1.25" Push-Fit Adapter.
Front and rear dust caps.

About the Starwave Mini-AZ Mount kit:
Quick to set up and intiutive to use with easy tension controls on both axes.
Perfect for visual astronomy with a small refractor. No power needed, no polar aligment needed (like for Equatorial Mounts), just point and go!
Fits any camera tripod with standard 3/8 thread (if 1/4, just use a 3/8 to 1/4 converter)
Has optional extension arm, stainless steel counterweight, and counterweight shaft.
Packs down tiny for travel.
Optional L-Bracket for Photo lens or spotting scopes with 1/4" thread fitting.
Designed for compact refractors like the Starwave 70ED and 80ED, spotters or even a camera and large telephoto lens.
Vixen format clamp - spring loaded with captive clamp.
80mm removable side-arm-extension to allow longer optical tubes to clear the tripod legs.


Starwave Mini-AZ Mount Specifications:
Total weight 1.5kg (Head, extension arm & clamp)
Stainless Steel Counterweight 1kg
Counterweight shaft 20cm
Head height 95mm
Head width 100mm
Head depth 55mm
Extension arm length 80mm.
Distance of Vixen-Style clamp from centre pivot-point with extension in place = 155mm
Distance of Vixen-Style clamp from centre pivot-point without extension = 60mm

Please note: The case is sold as "packaging only" and is provided with this telescope to protect it during shipping. The product guarantee does not extend to damage of the case during shipping, nor failure of the case, catches, zips, foam, or other fittings, and you are not being charged for the case when buying a telescope. If the case has absorbed damage, it is considered to have fulfilled it's function to protect the contents (which are of course guaranteed to arrive undamaged).

Our standard delivery charge for most of the UK is £2.95. All orders are shipped promptly, lower value items are sent Royal Mail 1st class and higher value or larger goods are shipped via reputable courier. All goods are shipped fully insured with FEDEX, UPS, DPD and Royal Mail, we do not use budget courier services, please note we can only ship to UK mainland addresses. We are not able to ship to forwarding agents or PO boxes.

Our Order Lookup system (see very top of each page for the icon and link) updates the order status in real time for you - simply by entering your order number and postcode..

We hold stock, dozens of telescopes and literally thousands of accessories that we ship out each business day, normally orders received before lunch are shipped that business day. We also direct ship from our UK suppliers, this means we have access to thousands of products that can ship fast to our customers.

Deliveries to UK mainland addresses are all shipped with fully insured premium services for £2.95, *some exceptions apply including many AB, FK, HS, IV, KA, KW, PA, PH, ZE postcodes. We will quote delivery charges to these areas where applicable prior to shipping (this does not normally affect lower value items shipped by Royal Mail).

You must inform us within one working day if the goods are lost or damaged in transit so that we can make a prompt claim against the delivery company and correct the problem. Please ensure all address details are accurate, we cannot be responsible for failed deliveries or losses arising from incorrect delivery addresses.

You agree that proof of delivery supplied by our delivery company is sufficient evidence to establish that goods have been received.

If your product is sent by Courier they will attempt delivery twice and a signature will be required. If they are unable to deliver because you are not available and after 5 days you have not contacted them to re-arrange. the goods will be returned to us and the return delivery costs may be charged to you

Altair Starwave 70ED Refractor & Mini-AZ Mount COMBO Package

MPN: SW70ED-COM





Price: 529.00

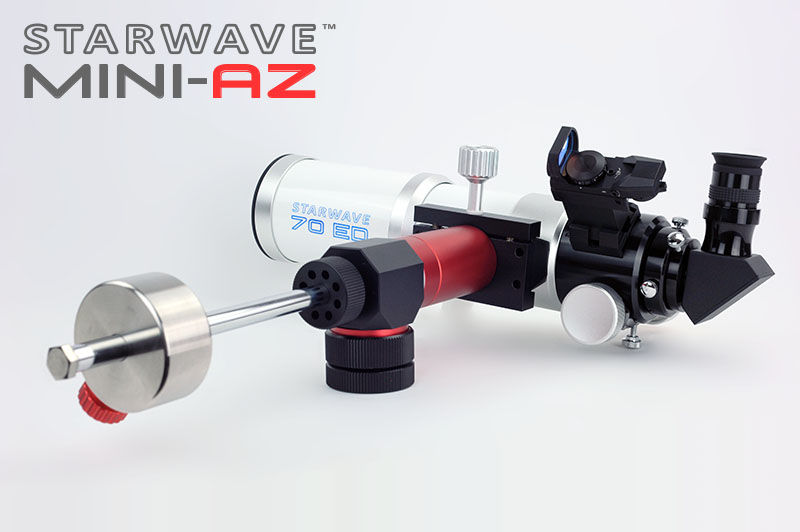

This package includes the Starwave 70ED refractor with Diagonal, RDF Finder, 17mm quality eyepiece, plus the Starwave Mini-AZ Mount. Now you can get a high quality portable refractor with genuine ED optics, and a super portable AZ mount, to take your telescope anywhere! An exceptional package for those wanting an ultra portable high quality instrument that is extremely versatile with remakable optics. The ED or extra low dispersion optics provide significant advantages with far superior control over abberations resulting in much sharper higher contrast views. All Altair refractors are checked optically and tested and guaranteed to be in collimation - this extra level of assurance is provided at no cost to the customer.

All you need to supply is your own camera tripod with a standard 3/8" thread on the top.
