Altair Wave Series 80mm F6 Super ED Triplet APO

Altair Wave Series 80mm F6 Super ED Triplet APO

The Altair Astro Wave series 80mm ED Triplet APO refractor uses a 480mm focal length air spaced apochromat lens with Japanese FPL53 ED glass from Ohara. A rigid aluminium tube with two tube rings allows stable mounting for astro photography, and the rotating 2.5" Rack and Pinion dual speed focuser can handle heavy loads whilst keeping the telescope light.

For visual observation, this telescope offers razor sharp, high contrast images, without any colour aberrations whatsoever in a very portable package.
For astro-photography, the Altair Planostar 1.0x Field Flattener (PLANOS-2-1.0-80-F6-M48) converts your Wave Series telescope into a flat-field astrograph at it's very fast F6 native focal length. DSLR and CCD adapters are available for attachment of various cameras (see associated products for more info).

What's included?
Altair 80mm Super ED Triplet telescope optical tube with serial number engraved on the lens
Optical test report corresponding to the serial number
Telescope tube rings
Vixen-format 1.75" dovetail bar
New CNC machined dual speed "Rack 'n Pinion" focuser with self-centering 2" pushfit adapter and Teflon tipped rotator
2" to 1.25" Self centering adapter
Front metal objective cap
1.25" plastic rear insert cap
a "free" foam filled transport case

This latest version includes a lighter weight OTA and a light weight dual-speed "Rack 'n Pinion" focuser, Teflon-tipped adjustable rotator, CNC machined internal knife edge baffles, and a self centering 2" rear adapter, and even a 2" to 1.25" self centering adapter with brass compression ring (sold by some companies for £50 on it's own!). Optional Field flatteners can be attached directly by unscrewing the self centering rear assembly and removing it from the focuser.

Tube rings are provided with standard M6 hole patterns to fit most hardware mounting systems on the market, and are fully compatible with the Altair TMS Telescope Mounting System TM.

We recommend the Altair Astro 60mm Deluxe Finder Scope (see related products) which is a perfect fit and can double as an autoguider for imaging.

As a portable wide field refractor for astro imaging or visual use, this is an extremely capable telescope in all areas. Colour correction is excellent, and contrast is very high, enabling faint and subtle details to be observed visually or in images. The optical tube assembly is perfect for even modest sized mounts such as the EQ3 upwards.

Altair Astro 80mm F6 ED Triplet APO Features:

80mm multi coated objective lens, 480mm focal length, FPL53 ED Optics from Ohara Japan

Highest practical magnification 150x, light grasp 131x human eye

43cm length, approx. weight 2.85kg (without optional finder).

1:10 ratio dual speed focuser with direct fit for optional 1.0x field flattener and 3x clamp compression ring for 2" accessories

2" to 1.25" eyepiece adapter

Tube rings with standard M6 30mm hole pattern (enabling the telescope to be balanced more easily for imaging, or dual-mounted as a guide scope).

Standard 1.75" (44.5mm) Vixen-format dovetail bar included.

FREE Protective case with foam padding (note the case is designed to protect the telescope during shipping and is therefore offered as "free". We cannot provide replacement cases if marked or damaged, however the telescope itself is of course fully insured against any damage in transit).

Altair Wave Series optics: Your 80-480 Super ED Triplet APO optics are repeatedly tested and re-figured at the final stages of production, until signed off by the optician in charge of the production batch. The best quality Ohara SFPL-53 glass is used in the ED element, which is fully annealed and cooled over several days to relieve internal stresses, having an Abbe number of 94.94, plus or minus .01 per batch. SFPL-53 is referred to as Synthetic Fluorite or Super ED. (Fluorite crystal by comparison is 94.99 but with slightly more variation from batch-to-batch, and has less stable chemical, thermal and physical properties). Each lens cell has a serial number engraved on the front ring. Working closely with our optical technicians, we have introduced a second and unique quality assurance process for all Wave Series lenses, to ensure the highest quality and lowest chromatic aberration. These lenses are modified, and are far superior to the "normal" production quality lenses offered by most manufacturers. Star tests speak for themselves, and colour correction is superb, as can be seen from the various observing reports and images taken with Wave Series refractors. Blue stars show negligible bloat in long exposure images. During the production process, a laser interferometer image is acquired in 532nm green light, and imported into fringe analysis software to create an optical test report. Each image is a "snapshot in time" of the lens on the test bench. Vibration, air currents and other environmental factors can influence the image and the outcome of the report slightly, though are minimised during testing. Providing a test report is a useful way for us to assure that our our internal production quality is consistent from batch-to-batch. A paper report printout is included with your telescope, which corresponds to the serial number visible on the lens (an example report is shown in the thumbnail images below the main product image, with serial number deleted).

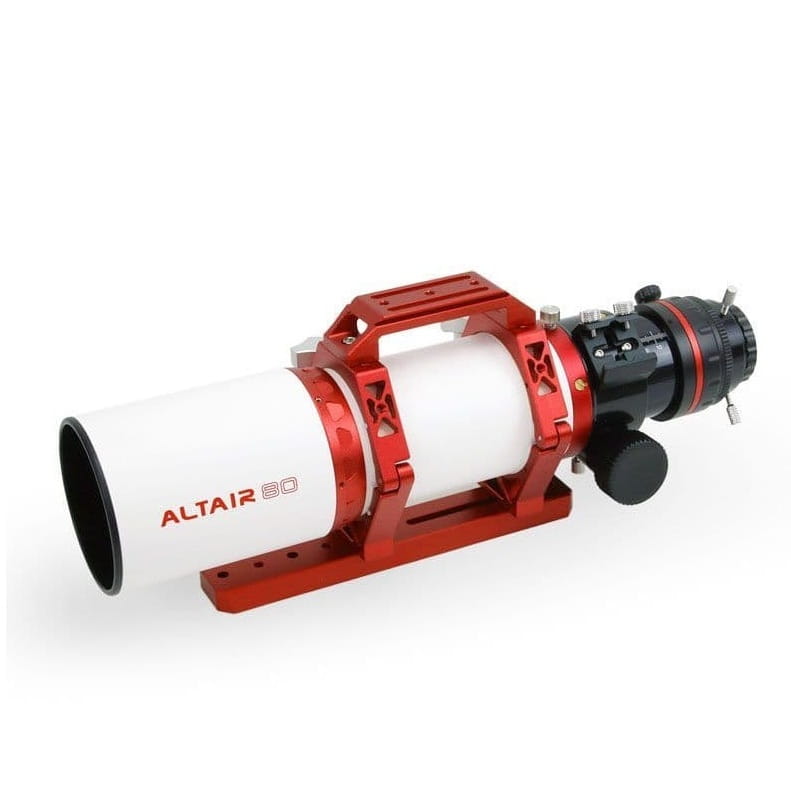

Please note - image shown with optional accessories.

Our standard delivery charge for most of the UK is £2.95. All orders are shipped promptly, lower value items are sent Royal Mail 1st class and higher value or larger goods are shipped via reputable courier. All goods are shipped fully insured with FEDEX, UPS, DPD and Royal Mail, we do not use budget courier services, please note we can only ship to UK mainland addresses. We are not able to ship to forwarding agents or PO boxes.

Our Order Lookup system (see very top of each page for the icon and link) updates the order status in real time for you - simply by entering your order number and postcode..

We hold stock, dozens of telescopes and literally thousands of accessories that we ship out each business day, normally orders received before lunch are shipped that business day. We also direct ship from our UK suppliers, this means we have access to thousands of products that can ship fast to our customers.

Deliveries to UK mainland addresses are all shipped with fully insured premium services for £2.95, *some exceptions apply including many AB, FK, HS, IV, KA, KW, PA, PH, ZE postcodes. We will quote delivery charges to these areas where applicable prior to shipping (this does not normally affect lower value items shipped by Royal Mail).

You must inform us within one working day if the goods are lost or damaged in transit so that we can make a prompt claim against the delivery company and correct the problem. Please ensure all address details are accurate, we cannot be responsible for failed deliveries or losses arising from incorrect delivery addresses.

You agree that proof of delivery supplied by our delivery company is sufficient evidence to establish that goods have been received.

If your product is sent by Courier they will attempt delivery twice and a signature will be required. If they are unable to deliver because you are not available and after 5 days you have not contacted them to re-arrange. the goods will be returned to us and the return delivery costs may be charged to you

Altair Wave Series 80mm F6 Super ED Triplet APO

MPN: AA80-480EDT-





Price: 1,100.00


The Altair Astro 80mm ED Triplet APO refractor uses a 480mm focal length lens cell with Japanese FPL53 ED glass from Ohara. A rigid aluminium tube with two tube rings allows stable mounting for astro photography, and the rotating 2.5" Rack and Pinion dual speed focuser can handle heavy loads whilst keeping the telescope light. All Altair refractors are checked optically and tested and guaranteed to be in collimation - this extra level of assurance is provided at no cost to the customer.
