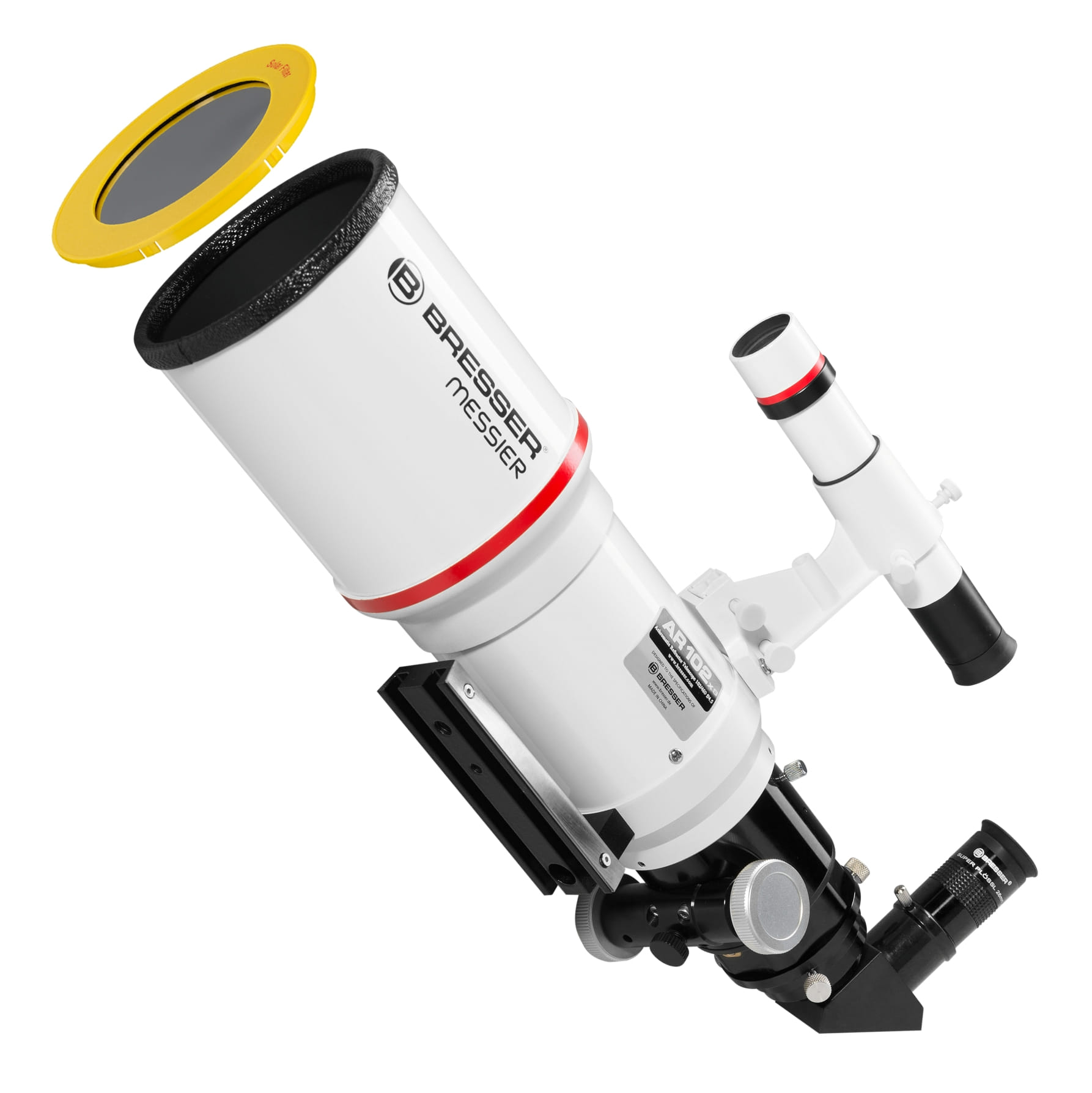

Bresser Messier AR-102xs ED Hex-Focus Optical Tube Assembly

Bresser Messier AR-102xs ED Hex-Focus Optical Tube Assembly

This short focal ratio (f/4.5) refracting telescope from Bresser is an ideal instrument for those who want a quick "grab and go" instrument for wide field deep sky observation. This diminutive scope really packs a deceptively large punch for deep sky observation, as its unobstructed aperture gives superb contrast. While the telescope's design features ED glass, it is not quite in the Apochromatic range of colour correction, but still gives a good account of itself for higher power observations of the Moon and brighter planets. But for wide field sweeping of the Milky Way and viewing objects like M31, the Bresser Messier AR-102xs/460 is a great choice. The supplied 26mm eyepiece provides 18x magnification and nearly a 3 degree true field for superb wide field views that can reveal objects like M31 and M45 magnificently.

The telescope comes complete with Bresser's innovative "no image shift" Hexfocus 2" low profile rack and pinion focuser, which can support a much larger payload than an equivalent Crayford style focuser. Its 2.5" clear aperture drawtube will prevent vignetting in even full frame DSLR cameras. This single speed option can be upgraded to a dual speed control knob, for finer focusing.

The telescope also comes with a 2" to 1.25" step down ring, a 1.25" diagonal and 1.25" Bresser 25mm Plossl design eyepiece. The telescope is also supplied with a lightweight 6x30mm straight through finderscope.

The Bresser AR-102xs can be mounted on most commercially available mounts as it is supplied with a standard Vixen/Synta style mounting foot, ideal for the Explore Twighlight or SkyWatcher AZ4 for ultimate portability or at home on the EQ3 / EQ5 class for imaging. Add a 45 degree erecting prism for fully corrected daytime views with this quality versatile refractor, a standard tripod thread on the dovetail allows direct connection to photographic tripods.

This telescope is only an optical tube assembly, supplied without mount and tripod.

102mm aperture f/4.5 doublet
460mm focal length
ED (extra low dispersion) glass lens
Excellent focuser with 2.5" (65mm) open diameter
6x30 straight through viewfinder
optimized finder bracket for comfortable use
31.7mm (1.25") diagonal mirror
Universal 44mm Dovetail plate with stainless steel rail (with photo tripod thread)
50.8mm (2") to 31.7mm (1.25") adapter with integrated T2 thread (optional T2-adapter ring for your camera is needed)

What's in the Box:
Optical tube
Eyepiece: 26 mm Super Plossl 31.7mm (1.25")
2" eyepiece adapter
6x30 viewfinder
31.7mm (1.25") diagonal mirror
PC Software Stellarium
Moon map

Customer Reviews

  Solid OTA with addictive wide-field views.  Attractive objective, solid rotatable focuser. Plastic eyepiece,diagonal,finder all way too flimsy. Quality eyepieces bring stunning, immersive views of bright targets like M31 & star clusters/asterisms & fainter galaxies / nebulae under dark skies. Fixed dew shield too short, ultra portable & light  (26/10/2017) Tim Versteegen - London

Our delivery charge for most of the UK is £3.95. All orders are shipped promptly, lower value items are sent Royal Mail 1st class and higher value or larger goods are shipped via reputable courier. All goods are shipped fully insured with FEDEX, UPS, DPD, DHL and Royal Mail, we do not use budget courier services, we can only ship to UK mainland addresses and are not able to ship to forwarding agents or PO boxes.

Our Order Lookup system (see very top of each page for the icon and link) updates the order status in real time for you - simply by entering your order number and postcode..

We ship each business day, orders received before lunch are normally shipped that business day. We also direct ship from our UK suppliers, this means we have access to thousands of products that can ship fast to our customers.

Deliveries to UK mainland addresses are all shipped with fully insured premium services for £3.95, *some exceptions apply including many AB, FK, HS, IV, KA, KW, PA, PH, ZE postcodes. We will quote delivery charges to these areas where applicable prior to shipping (this does not normally affect lower value items shipped by Royal Mail).

You must inform us within one working day if the goods are lost or damaged in transit so that we can make a prompt claim against the delivery company and correct the problem. Please ensure all address details are accurate, we cannot be responsible for failed deliveries or losses arising from incorrect delivery addresses.

You agree that proof of delivery supplied by our delivery company is sufficient evidence to establish that goods have been received.

If your product is sent by Courier they will attempt delivery twice and a signature will be required. If they are unable to deliver because you are not available and after 5 days you have not contacted them to re-arrange. the goods will be returned to us and the return delivery costs may be charged to you

Bresser Messier AR-102xs ED Hex-Focus Optical Tube Assembly

MPN: 4802460

Price: 240.00

Including VAT and Warranty ✔

A remarkable little telescope with ED glass for improved colour correction and contrast and a full 102mm (4") of unobstructed light collecting area in probably the most compact package we have seen for a 4". Build quality is excellent with the Hexagonal focuser providing precise control. The perfect quality grab and go refractor for low power wide angle views.

Supplied with a standard 44mm dovetail, finder, diagonal, 26mm eyepiece and T adapter.
