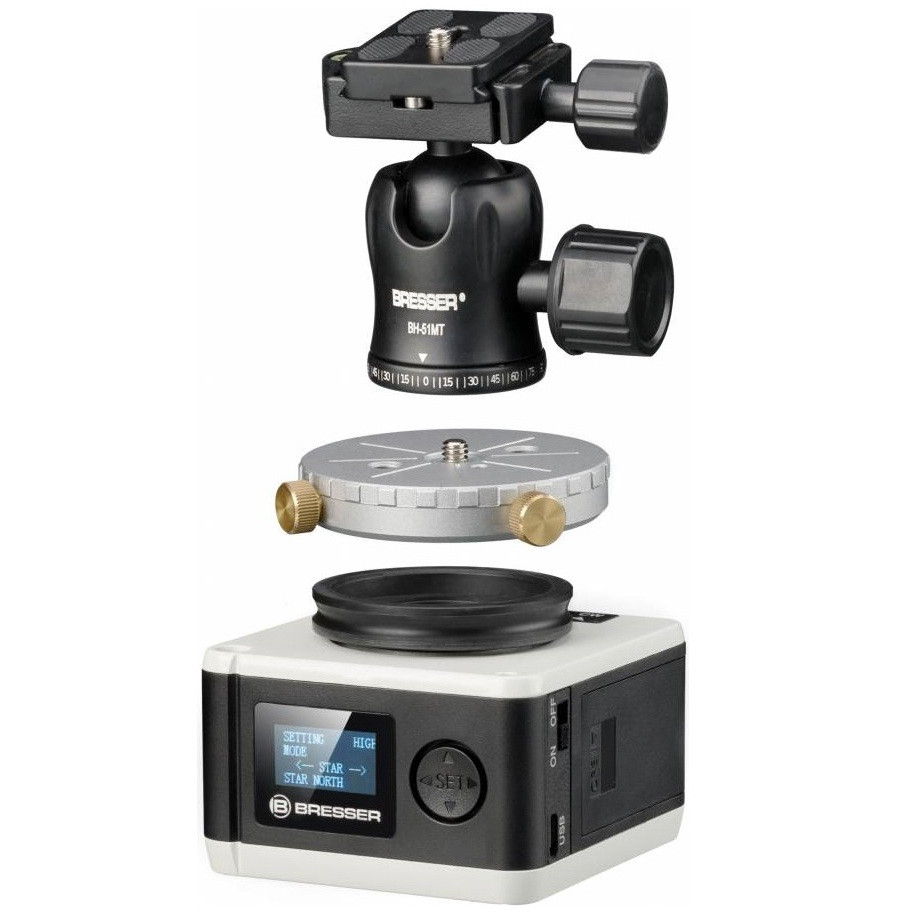

Bresser StarTracker Astronomical Photo Mount PM-100

Product Description

The Bresser StarTracker Astronomical PhotoMount PM-100 is the ideal camera base. This mount is particularly well suited not only for astrophotographic beginners, but its "go-anywhere" portability and simple-to-use features will also appeal to the experts too. The built-in tracking motor rotates the saddle-mounted camera precisely to counteract the earth's rotation and ensure that the stars remain in pinpoint shape, even with long exposures.

Delivery Time
Delivery is usually around seven business days direct from the supplier.

Attaches to a photo tripod
If you already own a sturdy photo tripod with a video/photo pan and tilt head, you can use the photo mount's head directly with 1/4 inch & 3/8 inch satndard guage photo thread holes. The pole height (latitude) is easily adjusted by panning and tilting the tripod's head. A dedicated photo-mount, tripod with carry-case and polar wedge are also available as a bundle - Product No. 4964120

What cameras to use
So, which cameras are basically suitable for use with the Bresser photo mount? All cameras with ¼ inch (6.3mm) tripod connection thread and bulb length "B" setting, for long exposure can be mounted to the StarTracker. The Bresser StarTracker Astronomical Photo Mount PM-100 is designed for a camera and lens combination of maximum of 2.0 kg total weight when used in polar mode. In Azimuth mode, the use of a combined camera and lens weight up to 5.0kg is possible.

What lenses to use
Large aperture, wide-angle lenses are ideal for beginning your journey into astrophotography, because more stringent requirements for tracking accuracy accumulate with increasing focal length and exposure time. Subsequently, a shot with wide-angle lens can be exposed for up to several minutes on the StarTracker and the stars remain sharp and undistorted. When using a longer lens, taking a 200mm telephoto lens as an example, the polar alignment of the photo mount must be exactly right to prevent trailing of stars. Thanks to the integrated pole finder tube, a quick polar alignment for wider field photos is easy. After setting up the StarTracker Photo Mount, simply set the approximate latitude (pole height) and aim at Polaris through the integrated pole finder tube. Then mount the camera with the photo lens, using the quick-release plate on the supplied ball head. With the ball head in place, the camera can be aligned and targeted in no time at any section of the sky. As soon as the tracking motor is switched on, long-time exposure can be started immediately. This can all be acheived in a matter of a few minutes.

Accurate star tracking
The tracking is carried out by a precise stepper motor, which can be controlled by an easy digital setup on LCD screen. Low power consumption allows up to 20 hours of operation with just one battery charge, or simply use the mount's micro USB port to provide an unlimited power supply from practically any USB power source - computer, portable battery etc..

FEATURES
Equatorial StarTracker Photo-Mount
Automatic siderial compensating for the Earth's rotation
Different tracking speed setting possible
Suitable for northern and southern henisphere
Time lapse: from 15 minutes to 48 hours
Ballhead with quick release saddle plate
and 1/4" Photo thread for Camera mounting
Photo-Mount with 1/4" threaded bolt for ballhead mounting
Additional quick release coupling for ball head removal
High precision stepper motor with helical gear for accurate tracking
Clear LCD screen and easy setup menu
Battery operation 4 x AA batteries or mico USB (optional acc.)
Battery life: up to 20 hours
Weight 0.63kg
Load capacity of Photo-Mount: up to 2.0kg/5.0kg (EQ/AZ)

SCOPE OF DELIVERY
StarTracker astronomical Photo-Mount head
Ballhead with quick release saddle plate
User manual
