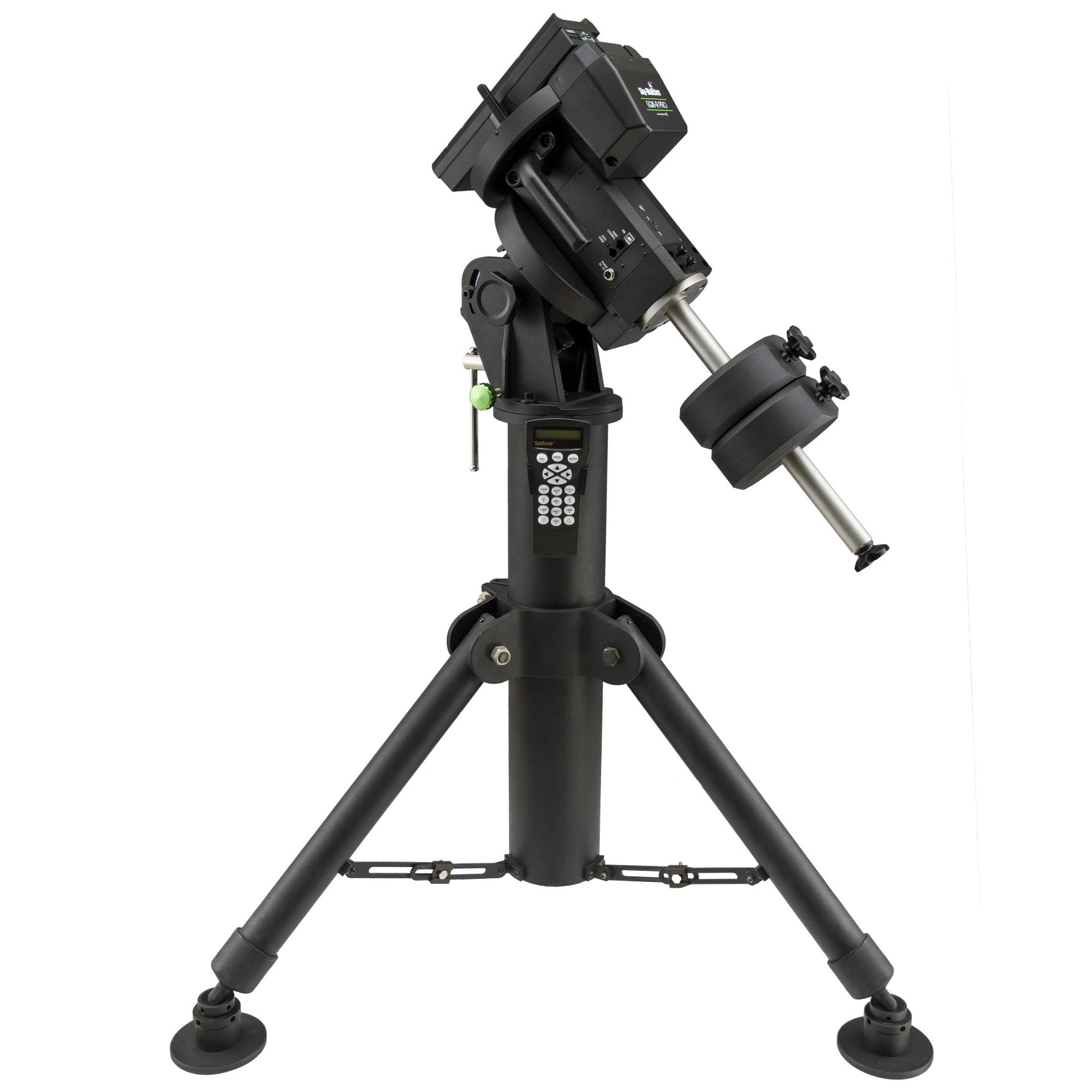

SkyWatcher EQ8-R Pro Mount and Pier Tripod

SkyWatcher EQ8-R Pro Mount and Pier Tripod

The Sky-Watcher EQ8-R Pro with pier tripod is an exciting evolutionary progression of the popular EQ8 Pro. The EQ8-R Pro is an extra heavy-duty, observatory class German equatorial mount, with a payload capacity of up to 50kg. Quiet in operation, the EQ8-R is supplied with the Synscan Go-To handset and can automatically find and track over 42,900 celestial objects from its extensive computer database.

This version is complete with pier tripod for the ultimate in mount and stable platform packages available. Two 10kg counterweights and the Synscan computerised handset are supplied with both options. The mount is also compatible with the optional Synscan™ Wi-Fi adaptor and Synscan Pro Apps which can control the mount wirelessly.

Improvements over the previous EQ8 model include:

• Cable management system for reduced tangling.

• Improved Connectivity

• Improved installation position of motors for improved balance.

• Improved clutch mechanism provides more holding strength.

• Improved dovetail groove knob for added comfort and increased locking power.

• Belt drive on the DEC axes for quiet slewing

**Please note Freedom-Find encoders are not present on the EQ8-R**



Specifications:
Payload Capacity (excl. counterweights): 50kg
Latitude Adjustment Range: 10° to 65°
Azimuth Adjustment Range: +/- 10°
Mount Head Weight (excl. tripod): 25.8kg
Pier Tripod (optional): 29.4kg
Counterweights: 2 x 10kg
Counterweight Rod: 2.6kg
Power Requirement: 11 to 16 Volts DC (Higher voltage preferred), 55W
Motors: 0.9° Hybrid Stepper Motor
Transmission: 435:1 Worm Drive + 256 Micro-Step/0.9° Stepper Motor
Resolution: 44,544,000 Counts/Rev, approx 0.03 Arc-Second
Maximum Slewing Speed: 3.7° per Second
Tracking Rates: Sidereal, Solar and Lunar Rates
Auto-Guiding Speeds: 0.125x, 0.25x, 0.5x, 0.75x & 1x
PPEC: 200 Segments Permanent PEC
Polar Alignment: By software control or optional Polarscope
Hand Controller: Synscan with 42,900+ Object Database
Control also possible with Synscan Pro Application for Windows via USB, Synscan Pro App for iOS and Android with optional Wi-Fi Dongle
4 x USB Ports and 3 x Power Outlets for Peripheral Devices
Paired RJ10, RJ12 and RJ45 modular jacks
DSLR Snap Port / Batch Exposures Function
Auto Home Function
Synscan Celestial Object Catalogue: Messier, NGC, IC, SAO, Caldwell, Double-Star, Variable Star, Named Star, Planets
Pointing Accuracy: Up to 5 arc-minutes (RMS)

Our standard delivery charge for most of the UK is £2.95. All orders are shipped promptly, lower value items are sent Royal Mail 1st class and higher value or larger goods are shipped via reputable courier. All goods are shipped fully insured with FEDEX, UPS, DPD and Royal Mail, we do not use budget courier services, please note we can only ship to UK mainland addresses. We are not able to ship to forwarding agents or PO boxes.

Our Order Lookup system (see very top of each page for the icon and link) updates the order status in real time for you - simply by entering your order number and postcode..

We hold stock, dozens of telescopes and literally thousands of accessories that we ship out each business day, normally orders received before lunch are shipped that business day. We also direct ship from our UK suppliers, this means we have access to thousands of products that can ship fast to our customers.

Deliveries to UK mainland addresses are all shipped with fully insured premium services for £2.95, *some exceptions apply including many AB, FK, HS, IV, KA, KW, PA, PH, ZE postcodes. We will quote delivery charges to these areas where applicable prior to shipping (this does not normally affect lower value items shipped by Royal Mail).

You must inform us within one working day if the goods are lost or damaged in transit so that we can make a prompt claim against the delivery company and correct the problem. Please ensure all address details are accurate, we cannot be responsible for failed deliveries or losses arising from incorrect delivery addresses.

You agree that proof of delivery supplied by our delivery company is sufficient evidence to establish that goods have been received.

If your product is sent by Courier they will attempt delivery twice and a signature will be required. If they are unable to deliver because you are not available and after 5 days you have not contacted them to re-arrange. the goods will be returned to us and the return delivery costs may be charged to you

SkyWatcher EQ8-R Pro Mount and Pier Tripod

MPN: 20323/20293





Price: 3,699.00


The Sky-Watcher EQ8-R Pro with pier tripod is an exciting evolutionary progression of the popular EQ8 Pro. The EQ8-R Pro is an extra heavy-duty, observatory class German equatorial mount, with a payload capacity of up to 50kg. Quiet in operation, the EQ8-R is supplied with the Synscan Go-To handset and can automatically find and track over 42,900 celestial objects from its extensive computer database.

This version is complete with pier tripod for the ultimate in mount and stable platform packages available. Two 10kg counterweights and the Synscan computerised handset are supplied with both options. The mount is also compatible with the optional Synscan™ Wi-Fi adaptor and Synscan Pro Apps which can control the mount wirelessly.
