SkyWatcher SkyMax 102 AZ-GTI Maksutov Telescope

Further details

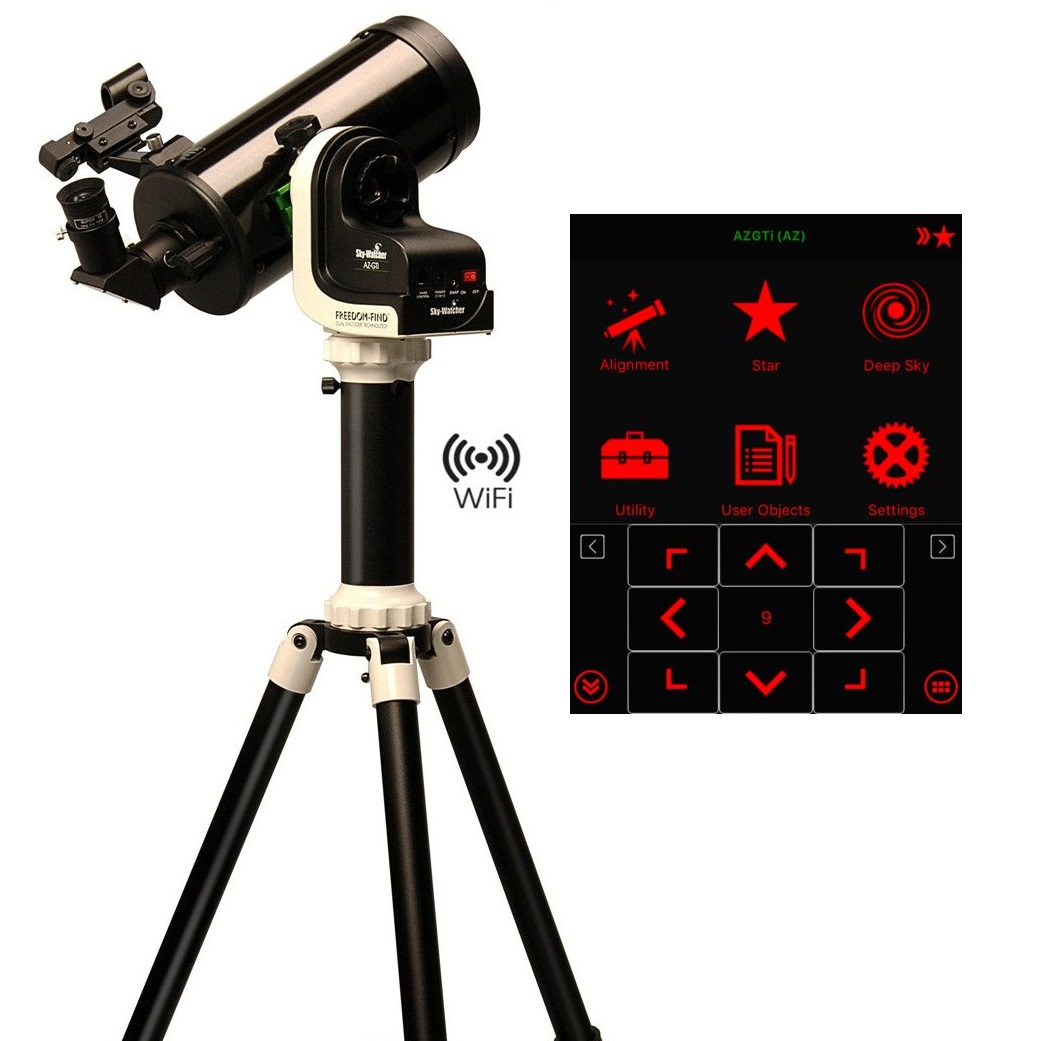

The lightweight and highly portable Sky-Watcher Skymax-102 (AZ-GTi) Maksutov cassegrain, has been designed to be controlled wirelessly with your Smartphone or Tablet, using the free SynScan App for iOS or Android. The AZ-GTi mounting, with it's built-in WiFi module, creates it’s very own Wi-Fi network, so the mount can be used anywhere, without WiFi or mobile networks. After following a simple alignment procedure, you are ready to explore the universe using the App’s intuitive touchscreen menu. Complete with eyepieces, finder and diagonal.

GoTo with Freedom find
The AZ-GTi and SynScan App provides full computerised GO-TO control, allowing the telescope to be automatically slewed to any one of the objects in the App’s extensive database of 10,000+ celestial objects. Incorporates Sky-Watcher’s Freedom-Find™ patented Dual-Encoder Technology, which allows the telescope to be moved manually in either axis without the mount losing its positional information. This gives the user enormous freedom, convenience and flexibility during observational sessions.

Compact & Powerful Mak optics
The compact but powerful Skymax-102 telescope is ideal for the observation of double-stars, and the surface detail of the Moon & bright planets. Its high-resolution, longer focal length optical system is multi-coated to maximise contrast and image sharpness and allows higher powers with standard eyepieces. A versatile quality package combining easy to use advanced wireless technology and compact optics.

Magnifications (with optics supplied): x52 & x130
Highest Practical Power (Potential): x204
Diameter of Primary Mirror: 102mm
Telescope Focal Length: 1300mm (f/12.7)
Eyepieces Supplied (1.25"): 10mm & 20mm
Smartphone adapter
Red Dot Finder
90° Star Diagonal (1.25”)
AZ-GTi WiFi Go-To Alt-Azimuth Mount

Controller
Free SynScan App for iOS and Android mobile device, or Synscan Hand Controller (available separately)

SynScan App Database
Total 10,000+ Objects. Deep Sky Objects: 10759, including Messier, NGC, IC, Caldwell Catalogues, Named DSOs, Named Stars: 305, Double Stars: 55, Solar system objects: 7 planets, Sun , Moon. (Unlimited objects when working with a 3rd party planetarium software).

SynScan App Alignment Method
Brightest Star Alignment, North-Level Alignment

SynScan App's Other Features
Tonight's Best Sky Tour, Point and Go with a mobile device, Identification of Celestial Objects, Remote control over Internet, User defined objects, Pointing Accuracy Enhancement (PAE)
Pointing Accuracy: Up to 10 arc-minute (RMS)
Resolution: 2073600 Counts/Rev., 0.625 arc-second
Resolution of Aux. R.A./Dec. Axis Encoders: 1068 Counts/Rev., approx. 20 arc-minutes
Freedom-Find™ Dual-Encoder Technology
Tracking Rates: Sidereal, Lunar, Solar, Alignment-Free Solar Tracking
Slewing Speeds: 0.5X, 1.0x, 8.0x, 16x, 32x, 64x, 128x, 400x, 800x
Tracking Mode: Dual Axis Tracking
Motor: DC Servo Motor, Gear Ratio 6480
45mm Sky-Watcher/Vixen type dovetail saddle

Interface
SynScan Hand Control Port, DSLR Shutter Release Port (optional cables available separately), Built-in Wi-Fi Module

Connectivity
ASCOM platform for Windows PC, Mobile planetarium App for iOS and Android (SkySafari Plus/Pro, more are coming).
Network Protocol: UDP, Port 11880

Adjustable Aluminium Tripod with Accessory Tray
Height of Tripod/Mount (excl. OTA): 80.5cm - 152cm
Total Weight with Tripod: 5.75kg
Power Requirement: 8 AA Size Batteries (not supplied) or External Power Supply (DC 7.5~14V, 0.75A) Tip Positive.
SynScan APP Download link

Delivery charge £5.95

Reviews

  Sky Watcher Sky Max 102 AZ-GTI  This is my first Goto telescope, easy to set up and move around, unfortunately the weather hasn’t been kind since I took delivery, but I am hoping for good results  (16/04/2023) Neil W - Liverpool

  Excellent Purchase  Relatively easy to set up having found a 30min video on YouTube. Retailer expedited goods super quick. Packaging and contents well cushioned with bubble wrap. Overall...well satisfied, although night sky not too good, which I need to complain about, but to whom.   (17/01/2020) Ian Cutler - Bridlington

  Skywatcher SkyMax 102 AZ-GTI Maksutov Telescope  This is my first time I've used a go-to mount and it is very Very good the tracking is good on it the focus is good Overall it is a very good piece of kit   (28/03/2019) Paul Johnson - Warrington

  Great goto system  First goto I've owned, easy to use with smartphone,nice and light to move around... Very happy with this telescope package, great value for money.....   (15/06/2018) -

  SKY WATCHER SkyMax 102 AZ-GTI Maksutov Telescope  This is my first foray into sky watching. I made a few 'phone calls & trawled around on the web. The most informed advice came from Harrison Telescopes & I made the purchase. The 'scope was well boxed & easy to set up. Info on the 'scope itself was not included & I got that off the web. Clear images   (02/02/2018) David Scott - Surrey
