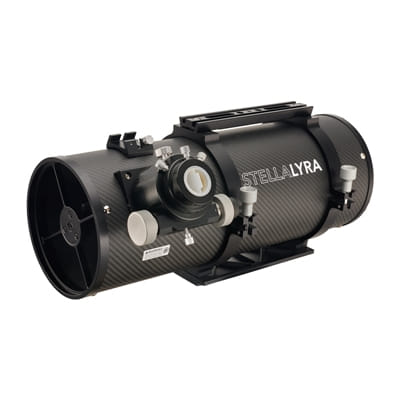

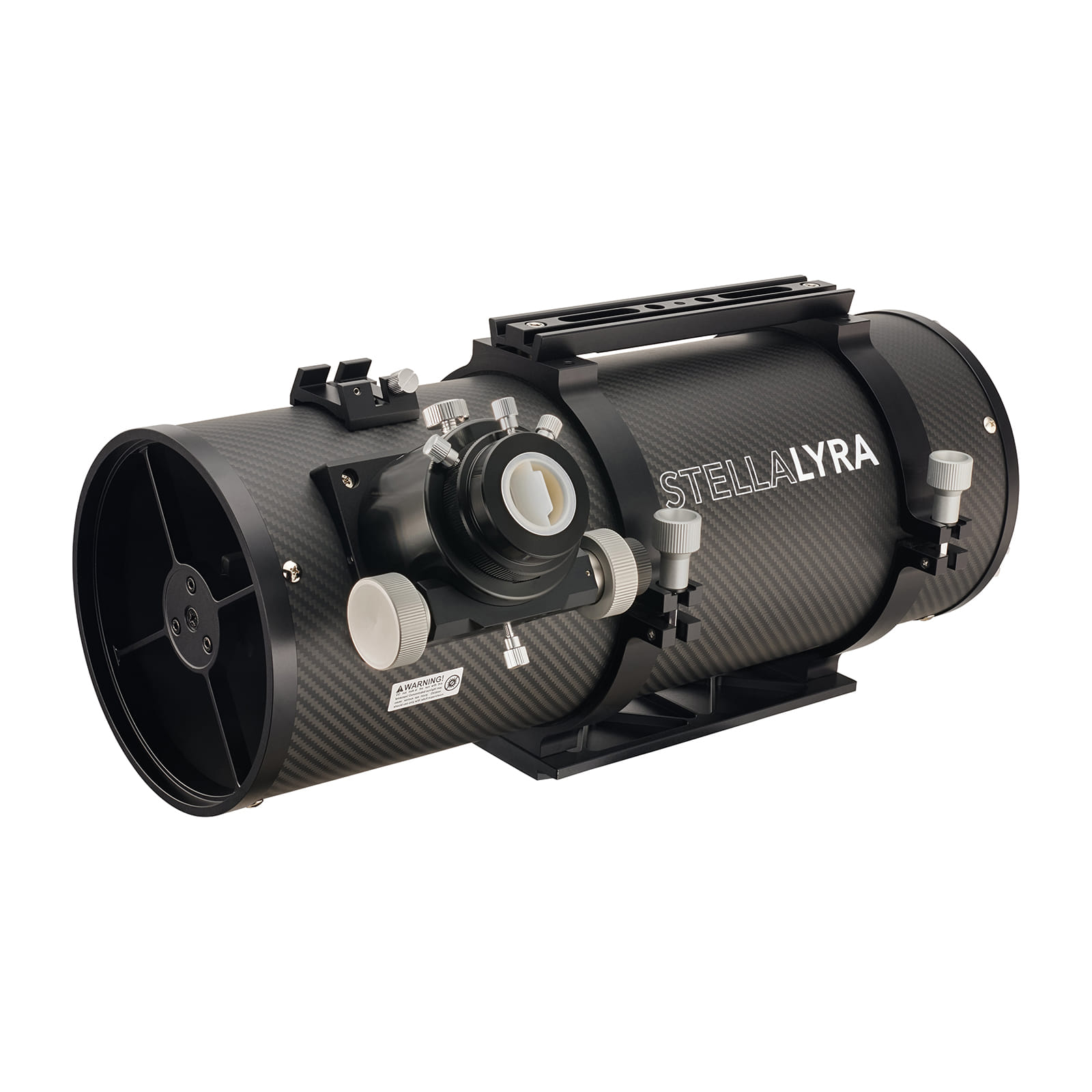

StellaLyra 8 Inch f4 M-LRN-D Carbon Fibre Imaging Newtonian with Dual-Speed R&P Focuser

Product Description

StellaLyra 8 inch f/4 M-LRN-D Carbon Fibre Imaging Newtonian Reflector with 2 inch Dual-Speed R&P Focuser
Designed and manufactured to a high standard by Guang Sheng Optical (GSO) in Taiwan.

This compact 8" StellaLyra reflector with a fast f/4 focal ratio is an excellent choice for deep-sky imaging with a dedicated astronomy CMOS/CCD camera or DSLR.

All StellaLyra imaging Newtonian telescopes feature GSO aluminised parabolic primary mirrors with a minimum 94% reflectivity and a silicon dioxide protective overcoat to ensure the surface remains bright for years.

Optimised for deep sky Astrophotography:
Stiff Carbon Fibre Tubes to aid collimation and enhance focus stability
Dual Speed Rack and Pinion Focuser, which can handle heavy camera loads without slipping
Oversized Secondary Mirror for excellent illumination
The CF Tube is blackened internally for enhanced contrast
Central mark on the primary mirror to aid collimation
Includes a Losmandy-style mounting dovetail plus a Vixen-style dovetail on top
Note: For astrophotography, a coma corrector is required for optimum results.

Features
High-Quality Parabolic Primary Mirror
2" Dual Speed Rack and Pinion Focuser
Carbon Fibre Tube internally blackened for enhanced contrast
Machined Metal Primary and Secondary Mirror Supports
Central Marking on Primary Mirror for ease of collimation
Includes a Losmandy-style mounting dovetail plus a Vixen-style dovetail on top

Specifications
Aperture 203mm
Focal Length 800mm
Focal Ratio f/4
Primary Mirror Parabolic primary mirror with 94% forced reflectivity and quartz protective coating
Secondary Mirror 70 mm small axis with 94% forced reflectivity and quartz protective coating
Resolution 0.58 arc second
Limiting Magnitude 13.3
Focuser 2" Dual Speed Rack and Pinion
Focus Point 26 mm above 1.25" or 41 mm above the T2 thread after unscrewing the 1.25" adapter
Mounting Losmandy-Style dovetail and tube rings included
Tube Carbon fibre 7.5kg
Overall Length 730mm
Tube Diameter 230mm
Warranty 2 years
